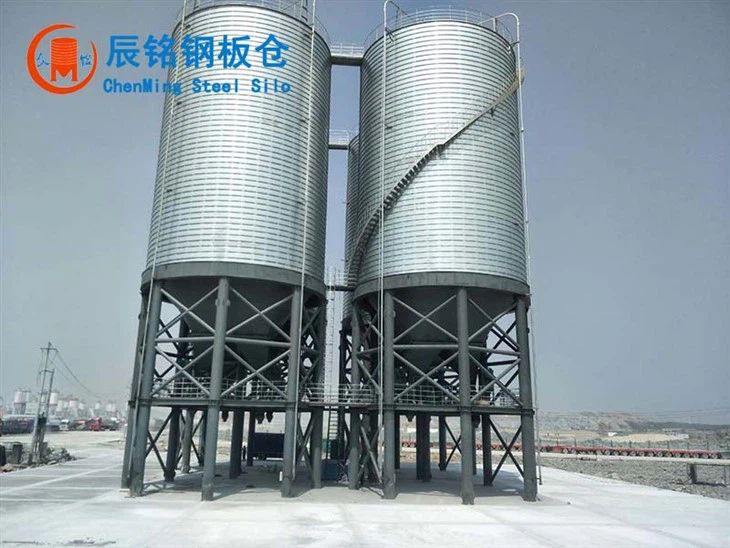

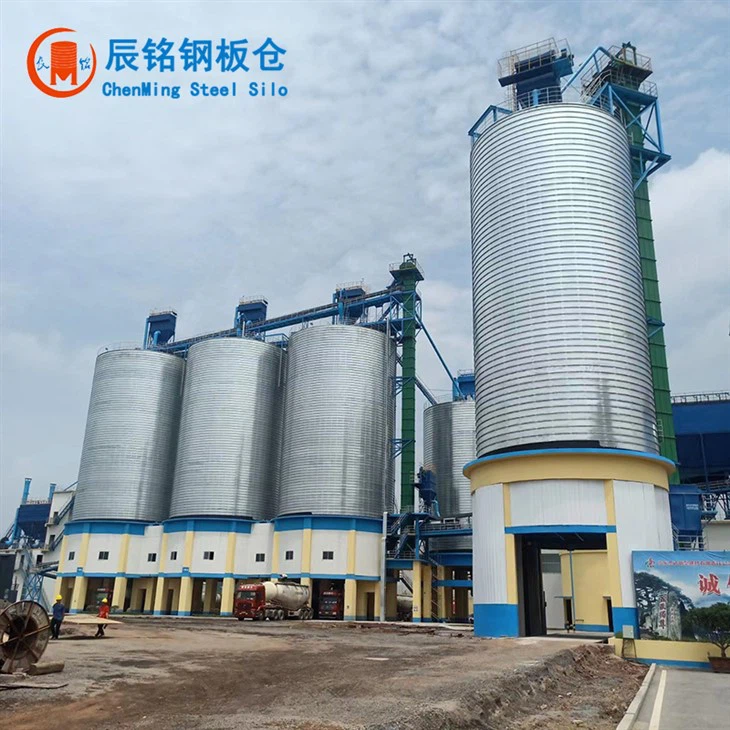

Cement Silo

Spiral cement silos are specialized storage equipment designed for powdered materials. Their core utilizes continuous cold-rolled spiral interlocking forming technology. With outstanding advantages of "superior sealing performance, high compressive strength, efficient construction, and controllable costs," they have become the mainstream powder storage equipment for mixing plants, cement factories, building material plants, and chemical industrial parks. They focus on solving the storage challenges of powdered materials: preventing moisture, clumping, and dust dispersion.

1. Dust Removal and Prevention System

● Configuration: Pulse-jet baghouse dust collector on silo roof (equipped with automatic differential pressure cleaning), discharge port dust collection hood, duct dust collector;

● Function: Filters dust within the silo during feeding to prevent airborne contamination; recovers leaked dust during discharge to achieve environmental compliance.

2. Arch-breaking and Discharge System

● Configuration: Bin-bottom fluidized bed (delivers compressed air via blower to fluidize material), air cannon (1-4 units for impact-breaking of caked material), screw conveyor / pneumatic conveying pump;

● Function: Resolves cement caking due to moisture and discharge blockages, enabling uniform and rapid discharge to meet continuous production demands of mixing plants.

3. Material Level and Pressure Monitoring System

● Configuration: Radar level gauge (real-time monitoring of silo material inventory), pressure relief valve (automatic pressure release when silo pressure exceeds limits), temperature sensor (monitors material heating);

● Function: Provides real-time feedback on silo material status, prevents overflow from full silos or shutdowns from empty silos, ensuring production safety.

4. Moisture-Proof and Anti-Corrosion System

● Configuration: Moisture barrier at silo base (asphalt felt + waterproof coating), anti-corrosion coating/galvanized layer on silo walls, rainproof sealant on silo roof;

● Function: Prevents groundwater and rainwater infiltration, protects silo structure from corrosion and prevents material moisture absorption and caking.

● Regular Inspections: Monthly checks for peeling/corrosion of wall galvanized coating/paint, loose joints; promptly retouch or tighten as needed.

● Dust Collection System Maintenance: Weekly cleaning of dust collector filter bags; verify proper operation of cleaning devices to ensure dust removal efficiency.

● Arch-breaking and Gasification System Maintenance: Periodically check air cannon storage tank pressure and gasification bed permeability. Clear residual material from discharge ports to prevent blockages.

● Moisture Prevention Inspection: Before rainy seasons, inspect silo roof waterproof seals and silo bottom moisture barriers. Repair damaged areas promptly to prevent material dampness.

● Winter Protection: In northern regions, install insulation layers on gasification beds and air cannon pipelines to prevent ice formation that could disrupt operations.
